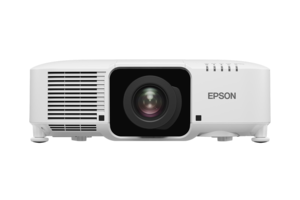

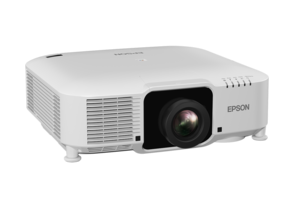

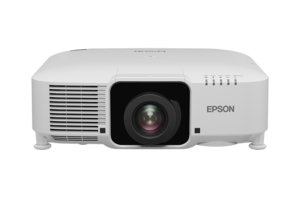

EB-PU1006W Laser WUXGA 3LCD Projector

6,000 lumens 3LCD installation projector

The EB-PU1006W large-venue projector combines a laser light source and 3LCD technology for powerful, uncompromising images. Ideal for events staging, auditoriums and sanctuaries, this advanced projector features native WUXGA performance with HDR and Epson^® 4K Enhancement Technology². Offering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Delivering 6,000 lumens of color brightness and 6,000 lumens of white brightness¹, the PU1006W's laser light engine also provides 20,000 hours of virtually maintenance-free operation³. Plus, its exceptional integration capabilities include diverse connectivity such as HDBaseT™ and eleven optional powered lenses (sold separately)

Model: V11HA35940

Where to Buy

Buy Online

CATALOGUE DOWNLOAD

Overview

One measurement of brightness is not enough — look for both high color brightness and high white brightness. EB-PU1006W has:

Color Brightness: 6,000 lumens¹
White Brightness: 6,000 lumens¹

Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement² for presentations, videos, digital signage and more

Solid-state laser light source — designed with inorganic components for up to 20,000 hours laser light source life*

Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, and VGA , for easy integration with any system

Epson® 4K Enhancement Technology² — a revolutionary technology that accepts 4K signal and enhances 1080p for output that surpasses Full HD image quality

4K-Ready lenses — eleven optional interchangeable lenses with powered lens shift and lens memory (sold separately)

Web-based remote management — control and monitor projector status via a Web browser

Professional installation features — full 360-degree installation flexibility

Specifications

Specifications Projector:

Color Reproduction: Up to 1.07 billion colorsContrast Ratio: Over 2,500,000:1Projection System: Epson 3-chip
3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2304000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 6000 lumens1White Brightness - White Light Output: 6000 lumens1Aspect Ratio: 16:10Native Resolution: 1920 x 1200 (WUXGA)Light Source Life: 20,000 hours (Normal Mode)

Power:

Power Supply Voltage: 100 – 240 V ±10%
50/60 Hz ACPower Consumption: Normal Mode: 367 W

General:

Weight: 15.4 kg

Projection Lens:

Type: (For ELPLM08) Powered shift/ focus / zoomF-number: (For ELPLM08) 1.7 - 2.3Focal Length: (For ELPLM08) 24.0mm - 38.2mmLens Shift: (For ELPLM08) Vertical: ±67% (H Center)/Horizontal: ±30% (V Center)Zoom Ratio: (For ELPLM08) 1 - 1.6Screen Size: (For ELPLM08) 50" to 1000"

General Projector (Projector Details):

Interfaces:

DVI-D x 1

HDMI x 1

HDBaseT x 1

LAN x 1

VGA x 1

Audio out x 1

USB connector Type B x 1: For service only

USB connector Type A x 1: For wireless only

Serial: RS-232c x 1
Fan Noise: Normal mode: 30 dB

Dimensions Projectors:

Including feet: 545 x 164 x 436mm

See Full Specs Hide Full Specs

Print All Specs

Notes:

* 20,000 hours is the estimated life of laser light source when used in Normal Mode. Actual hours may vary depending on mode and usage environment.

1. Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118

2. 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160 and surpass Full HD image quality

3. No maintenance for the light source required up to 20,000 hours. Replacement of parts other than the light source may be required in a shorter period
