EB-L30000U 3LCD Laser Light Source Projector

Monday to Friday 9:00 to 18:00 HKT

World’s Smallest and Lightest 3LCD laser projector with 30,000 lumens plus 4K Enhancement

Epson’s flagship laser projector - EB-L30000U, offers the best and brightest performance of the EB-L Series. Ideal for rental, staging and other large-venue applications, this projector combines a laser light engine with inorganic components for extraordinary brightness and reliable performance. Premium features include 30,000 lumens of color brightness and 30,000 lumens of white brightness1, 4K-Ready lenses, native WUXGA resolution with 4K Enhancement Technology2, sealed optical engine, 3G-SDI and HDBaseT™ connectivity. Installers can choose from eight optional lenses with powered lens shift and lens memory (sold separately). EB-L30000U's laser light engine also provides 20,000 hours of virtually maintenance-free operation3

      • Projection System: High-aperture Epson 3-chip 3LCD
      • Native Resolution: WUXGA (1920 x 1200) w/ 4K Enhancement Technology2
      • Color Brightness: 30,000 lumens1
      • White Brightness: 30,000 lumens1
  • Model: V11H944860
  • World’s Smallest and Lightest 3LCD laser projector with 30,000 lumens1 plus 4K Enhancement2 — EB-L30000U has:

    Color Brightness: 30,000 lumens1
    White Brightness: 30,000 lumens1
  •

  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement2 for presentations, videos, digital signage and more
  • Solid-state laser light source — designed with inorganic components for up to 20,000 hours laser light source life*

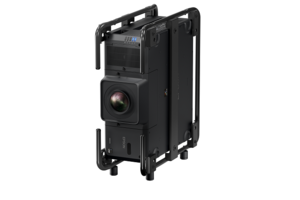

  • Designed for rental and staging — features a sealed optical engine, 3G-SDI connectivity, and true 360-degree projection flexibility
  • Epson® 4K Enhancement Technology2 — a revolutionary technology that accepts 4K signal and enhances 1080p for output that surpasses Full HD image quality
  • 4K-Ready lenses — eight optional interchangeable lenses with powered lens shift and lens memory (sold separately)
  • Dynamic projection capabilities — advanced built-in Edge Blending, auto image calibration and more

    Eco Features
  • RoHS compliant
  • Specifications Projector:


    Color Reproduction: Up to 1.07 billion colorsContrast Ratio: Over 2,500,000:1Projection System: Epson 3-chip
    3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2304000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 30,000 lumensWhite Brightness - White Light Output: 30,000 lumensAspect Ratio: 16:10Native Resolution: 1920 x 1200 (WUXGA)Light Source Life: 20,000 hours (Normal Mode)

    Power:


    Power Supply Voltage: 200 – 240 V ±10%
    50/60 Hz ACPower Consumption: Normal Mode: 2325 W

    General:


    Weight: 63.8 kg

    Projection Lens:


    Type: (For ELPLM12) Powered shift/ focus / zoomF-number: (For ELPLM12) 1.9-2.1 Focal Length: (For ELPLM12) 54.7mm-73.0mm Lens Shift: (For ELPLM12) Vertical: ±65% (H Center)/Horizontal: ±30% (V Center)Zoom Ratio: (For ELPLM12) 1 - 1.35Screen Size: (For ELPLM12) 100" to 1000"

    General Projector (Projector Details):


    Interfaces: 3G-SDI x 1
    DVI-D x 1
    HDMI x 1
    HDBaseT x 1
    5-BNC
    VGA x 1
    Audio in: Mini
    Stereo x 3
    Variable audio out: Mini Stereo x 1
    USB 2.0 Connectors Type B x 1 (For Service Only)
    Type A x 1 (For Wireless Only)
    Monitor Out Mini D-sub 15 pin x 1
    Serial Control Serial: RS-232c x 1
    SDI Out x1Fan Noise: Normal mode: 49 dB

    Dimensions Projectors:


    Including feet: 790 x 299 x 710mm

    Notes:

    * 20,000 hours is the estimated life of laser light source when used in Normal Mode. Actual hours may vary depending on mode and usage environment.


    1. Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

    2. 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160 and surpass Full HD image quality.

    3. No maintenance for the light source required up to 20,000 hours. Replacement of parts other than the light source may be required in a shorter period
