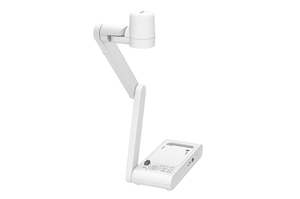

ELPDC30 4K Document Camera

4K UHD Wireless Visualiser

With 4K UHD resolution, the 13 mega-pixel camera and 10x optical and 23x digital zoom, Epson ELPDC30 can provide stunning image quality in every learning setting. ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity.

Model: V12HB09080

Where to Buy

Support

Overview

What's in the box:

DC30 Document Camera, 6' power cable with AC adapter, 10' USB cable, 6' HDMI cable, remote control with (2) AA batteries, microscope adapter and warranty card

Specifications

General:

Weight: 2.8 kgSecurity: Kensington Lock

Power:

Power Supply Voltage: 100 - 240V ACPower Consumption: 9.6 W (Lamp On), 8.0 W (Lamp Off)Rated Frequency: 50 / 60 HzOutput Voltage of AC Power Adapter: DC 5V

Camera:

Frame Rate: 60 fps (Max)Lighting Source: White LED x 8 (Variable LED light)Output Signals / Resolution: HDMI: XGA / 720p / Full HD / 4K
USB Type mini-B: 320 x 180 / 320 x 240 / 640 x 360 / VGA / XGA / 720p / WXGA / QVGA / SXGA / Full HD / UXGA / 2048 x 1536 / 2560 x 1920 / 4K
Miracast: Full HD

Optics:

Zoom: Total Max: 230x
Optical Max: 10x
Digital Max: 23xCapture Area: 345 x 480 mm at 470 mm (large than A3: via Wide Angle mode (4:3)Lens: F-number: F = 2.8Focus: Automatic (need to press "Auto Focus" Button)
Focus adjust time: less than 4 secIris: 100 lx or above (at A3 shooting area)

Functions:

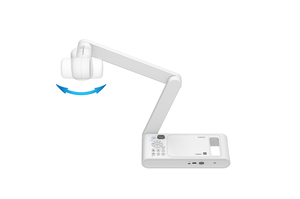

Image Rotation: (Camera head) Mechanical rotation range: Rotation: -90 to +90 degrees / Horizontal: 0 to 180 degrees
Image Rotation: 0 degrees / 180 degreesImage Freeze: Yes

Dimensions -Doc Camera:

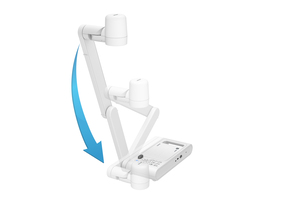

Closed / Folded: 362 x 85 x 159 mmOpen / Unfolded: 586 x 554 x 159 mm
