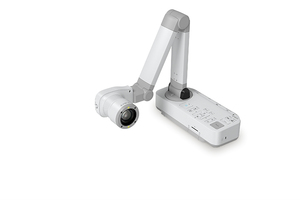

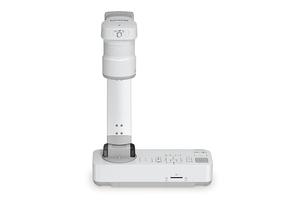

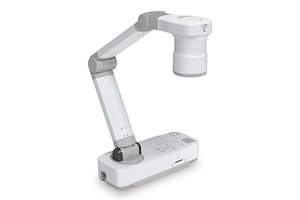

ELPDC21 Document Camera

Engage students like never before with the Epson ELPDC21 document camera. This portable performer easily captures and displays books, 3D objects and experiments with amazing clarity, thanks to HD 1080p resolution, a large imaging sensor and HDMI® connectivity. Share the finest detail with 12x optical zoom and 10x digital zoom. Or, display magnified images with the microscope adapter. Record audio with video using the built-in microphone. At 30 fps, video playback is seamless. And, there are convenient Freeze and Capture buttons. Plus, you can save lessons to an SD card¹ or computer.

Model: V12H758052

Where to Buy

Support CATALOGUE DOWNLOAD

Overview

Deliver powerful lessons with extraordinary close-up detail — 10x digital zoom plus 12x optical zoom

Astounding clarity and color — HD 1080p output resolution

Advanced connectivity — HDMI digital connectivity for high-definition video

Share magnified images — microscope adapter included; supports many standard microscopes

Record and share audio/video lessons — built-in microphone and included software; one-touch A/V recording

Ultra smooth video performance — 30 frames per second (fps) at a 1080p frame rate

Capture, save and present images — supports SD cards1 and computers

Convenient Freeze and Capture buttons — easily pause and/or resume the image

Eco Features

RoHS compliant

Specifications

General:

Weight: 5.8 lbOperating Systems: Windows® 7
Windows 8
Windows 10
Windows Vista®
Mac OS® X 10.7.x
10.8.x
10.9.x
10.10.x
10.11.xSecurity: Kensington® lock support
Metal security bar
Security mounting holesTemperature: 41 ° to 95 °F (5 ° to 35 °C)Humidity: 20 - 80%

Power:

Power Supply Voltage: 100 - 240 V ACPower Consumption: 13 W (Operating)
< 0.5 W (Standby Mode)Rated Frequency: 50/60 HzOutput Voltage of AC Power Adapter: DC 12 V

Camera:

Frame Rate: 30 fps max.Lighting Source: Upper: White LED x 2
Brightness: 250 lx or above @ A3 shooting areaImaging Element:

Pick-up device: 1/2.7" CMOS sensor

Effective pixels: 1920 x 1080
2 megapixels

White Balance: Auto

Exposure: Adjustable

Brightness: AdjustableOutput Signals / Resolution:

SXGA (1280 x 1024)
XGA (1024 x 768)
WXGA (1280 x 800)
HD (1360 x 768)
1080p (1920 x 1080)

USB: VGA
SVGA
XGA
SXGA
WXGA
720p
1080p

HDMI: 480p/720p/1080p

Optics:

Zoom: 10x digital zoom
12x optical zoomCapture Area: Max: 11.7" x 20.7" (at 1080p); 11.7" x 16.5" (at XGA)Lens: F-number: 3.4-5Focus: Automatically with one-touch buttonIris: 250 lx or above @ A3 shooting area

Functions:

Image Rotation: Camera Head Rotation: 180 degrees (Horizontal/Vertical)Internal Memory: SD card slot (SD/SDHC only)1User Functions: Zoom
Freeze
Auto Focus
Focus Lock
LED
Brightness
Contrast
Negative
Black and White
Split Screen
Playback
Video Capture
Digital Scroll (pan/tilt)
Flicker Reduction
Image Rotation
Source (PC/ DC)
Auto-detect Aspect
Video Recording
Video Playing

Interface:

Type of Interactive Input Device:

HDMI

Computer In (VGA)

Display Out (VGA)

USB-B (for connection to PC/Mac®)

SD Card Slot1

Application Software:

Driver: TWAIN (for Windows)Functions: Rotation
Zoom (+
-
selectable
x1)
Auto Focus
Freeze
Record
Time-lapse
Picture Control (Brightness
Contrast
White Balance
Auto White Balance)Language: 13 languagesSaving Format:

Still Image: JPG
BMP
PNG

Video (Windows): AVI

Video (Mac): MOV

Other: PDF
EIT

Dimensions -Doc Camera:

Compatible Pen Battery Types: Closed/FoldedOpen / Unfolded: 10.6" x 19.7" x 12.9"

See Full Specs Hide Full Specs

Print All Specs
