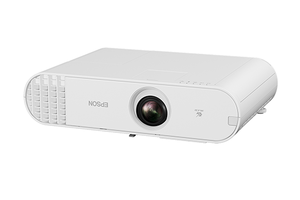

EB-U50 WUXGA 3LCD Projector

Friendly, Elegant & Compact Multimedia Projector

Delivering high brightness, WUXGA resolution and advanced connectivity options, including built-in wireless projection, Epson EB-U50 multi-media projector is designed for either SME/SOHO or Education use.

High Color Light Output
EB-U50 has 3,700lm color light output, WUXGA (16:10) resolution and 16,000:1 contrast. You can enjoy beautiful and clear images wherever you go without worrying about ambient light levels.

Brightness has long been the specification used for projector comparisons; however the old specification measured only White Light Output, rather than measuring both White Light Output and Color Light Output. The vast majority of the projectors today project color so measuring White Light Output or White Brightness alone is insufficient. Color Light Output gives the projector buyers the data they need and have been missing.

Color Light Output is measured in accordance with IDMS (Information Display Measurements Standard) 15.4 which was standardized in June, 2012 by SID, a major international organization in electronic displays.

Longer Lamp and Filter Life
The long 10000 hours lamp and filter life saves time and money by redcuing the frequency of costly lamp and filter replacement.

Enhanced Usability

- Auto Source Search
The projector automatically detects the input source to allow projection to automatically begin without the user having to manually switch the input.

- Auto Power On
Projection starts automatically when a signal from the computer is received while the projector is in standby. There is no need to turn on the power using the remote control or the power button on the projector itself.

- Home Screen
The home screen displays functions which are used the most frequently, including source, wireless connection status. So, they can be accessed easily and immediately. On default setting, home screen will automatically appear when no signal is input. When signal is input, users can move to home screen by pushing home button on control panel or remote.

Built-in Wireless Module
EB-U50 has internal wireless functionality, so it can connect wirelessly all on its own. With Wi-Fi connection, you can display images and files from your smartphone or tablet via 《Epson iProjection》application or your PC via《EasyMP Network Projection》software. This is a convenient solution for smooth and smart projection.

Multi PC Projection
EB-U50 comes with advanced features such as multi-PC projection while the projector is connected to the local wireless network via the built-in wireless LAN. The Multi PC Projection feature allows a network of up to 50 PCs to be connected via Epson's 《EasyMP Multi PC Projection》software to a single projector. The newest version of this feature allows a host PC to act as a Moderator who can then select up to 4 of these connected computers and project their screens. The addition of a Moderator helps to maintain control and prevents tampering with the projected screen.

Built-in Edge Blending
For bigger, more dynamic displays, the edge blending function allows you to seamlessly join several projections together.

Split Screen
Split Screen allows input from two separate sources to be displayed side by side on the same screen. For example, images from a document camera and an electric textbook could be projected at the same time.

Stylish Design & ECO function
The compact size of EB-U50 (364 x 87 x 248 mm) makes it easy to carry between meetings and maximizes placement possibilities in even the smallest of meeting rooms. And EB-U50 was designed to prevent anyone from being exposed to the hot exhaust even when on a narrow table. Furthermore, the long-life lamp will last up to 17,000 hours in Eco mode, which minimizes lamp replacement, and therefore reduces total cost of ownership.

Model: V11H952060

Where to Buy

Support CATALOGUE DOWNLOAD

Overview

Far more accurate color with Epson — 3LCD, 3-chip technology for 3x Higher Color Brightness^* and up to 3x Wider Color Gamut^†than competitive DLP projectors

One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The U50 has:
Color Brightness (for more accurate, vivid color): 3700 lumens¹
White Brightness (for well-lit rooms): 3700 lumens¹

Pro-quality projector — WUXGA resolution (1920 x 1200) offers 4.5x more resolution than SVGA for Full HD 1080p content; plus enhanced connectivity

Wireless — project from your laptop, tablet, or smartphone²without plugging into the projector, so you can move freely about the room

Fast, easy setup, only from Epson — get up and running in no time with easy image adjustments and convenient control

Compatible with the latest laptops and media players — supports HDMI, the standard in connectivity, for digital video and audio with just one cable

Portability you need for presentations on the go

USB Plug 'n Play — use the included USB cable to instantly project content from a PC or Mac®
Eco Features

Specifications

Projection Lens:

Type: Optical zoom Manual zoom / Manual focusF-number: 1.50 – 1.71Focal Length: 20.42 – 24.50 mmZoom Ratio: Optical zoom 1.0 – 1.2

General:

Weight: 6.83 lb (3.1 kg)

General Projector (Projector Details):

Interfaces:

HDMI x 2

Computer: D-sub 15 pin x 2

Audio in: Stereo mini x 2

USB connector Type A x 1

USB connector Type B x 1
Speaker: 5 W (mono)Fan Noise:

ECO mode: 28 dB

Normal mode: 37 dB

Specifications Projector:

Lamp Life:

ECO mode: Up to 17000 hours2

Normal mode: Up to 10000 hours2
Throw Ratio Range: 1.38 (Zoom:Wide)
1.68 (Zoom:Tele)Keystone Correction:

Automatic: Vertical: ±30 degrees

Manual: Horizontal: ±30 degrees
Size - projected distance: 30" – 300" (0.87 – 9.02 m)Contrast Ratio: Up to 16000:1Color Processing: Up to 1.07 billion colorsProjection System: 3LCD
3-chip technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 2304000 dots (1920 x 1200) x 3Color Brightness - Color Light Output: 3700 lumens1White Brightness - White Light Output: 3700 lumens1Aspect Ratio: 16:10 native
supports 4:3 and 16:9Native Resolution: 1920 x 1200 (WUXGA)Lamp Type: 200 W UHE

Dimensions Projectors:

Excluding feet: 364 x 87 x 248mm (W x H x D)

Power:

Power Supply Voltage: 100 – 240 V ±10%
50/60 HzPower Consumption:

ECO mode: 218 W

Normal mode: 285 W

See Full Specs Hide Full Specs

Print All Specs

Support

Notes:

*Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

† Gamut volume of leading Epson business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014. Volume is measured in 3D in the CIE L*a*b* coordinate space.

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner's manual to determine if a wireless LAN module must be purchased separately to enable wireless connection on your Epson projector. Not all Epson projectors are able to be networked. Availability varies depending on model.

Specifications Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
