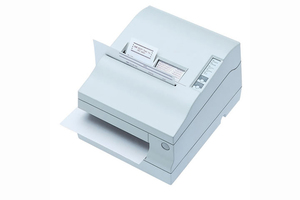

TM-U950 Multifunction Printer

The TM-U950 multifunction Point-of-Sale (POS) printer is a high performance 2.5 station printer that is a perfect choice for large POS systems used by mass merchandisers and other large stores. It handles a variety of printing formats including receipts, journals, and slips. It also offers optional check printing and endorsement capabilities.

Model: C31C151391

Where to Buy

Overview

High performance with speeds up to 300 characters/sec

Versatile slip printer with ability to print up to 88 columns

Superior MICR capability

User friendly features and flexible paper handling

NT & IT service connectivity

Specifications

Consumables:

Inked Ribbon: ERC-31Ribbon Life: 4,000,000 characters

Power:

Power Consumption: Approx. 1.7 A (mean)Power Source: 24 VDC ± 10%

Print Fonts:

Character Size: 1.56 x 3.1mm (W x H) / 1.24 x 3.1mm (W x H); [0.061 x 0.122" / 0.049 x 0.122"]Column Capacity:

Receipt: 37 / 50 columns

Slip / Validation: 45 / 60 columnsCharacter Set: 95 Alphanumeric
37 International
128 x 11 Graphic charactersFonts: 5 x 9 / 7 x 9

Media Handling:

Length: Validation: 8 linesThickness:

Receipts or Journal: 0.06 to 0.085mm [0.0024 to 0.0033"]/sheet (total thickness: 0.2mm [0.0079"] or less)

Slip: 0.09 to 0.2mm [0.0035 to 0.0079"]/sheet (total thickness: 0.09 to 0.31mm) [0.0035 to 0.0122"]Media Dimensions:

Receipts and Journal: 82.5 ± 0.5 x diameter 83mm [3.25 ± 0.02 x diameter 3.27"]

Slip: 70 to 148 x 150 to 210mm (W x L) [2.76 to 5.83 x 5.91 to 8.27"]

Validation: 148 to 150 x 70 to 210mm (W x L) [5.83 to 5.91 x 2.76 to 8.27"]Copy Capacity: One original and two copies

Connectivity:

Standard Connectivity:

Serial

Print Other:

Printing Technology: 9-pin
serial impact dot matrixPrint Speed: Approx. 5.14 lps (40 columns
17.8 cpi)

General:

Weight: Approx. 4.8 kg (10.6 lbs]); With autocutter approx. 5.8 kg (12.8 lbs)Safety Approvals: Control Board:

EMI standards: VCCI class A
FCC class A
CE marking

Safety standards: UL
CSADimensions: 186 x 298 x 195mm (W x D x H) [7.3 x 11.7 x 7.7"]

POS General (POS Details):

Reliability, POS General:

MTBF 180,000 hours

MCBF 37,000,000 linesNV Bit Image Memory: 384 KB can be used to store graphic filesD.K.D., POS General: 2 driversOptions: Auto Cutter
MICR
