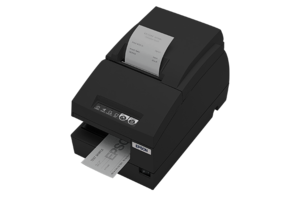

TM-U675 Multifunction Printer

The Quietest Printer in its Class and is Ideal for Both Banking and Retail Environments

The TM-U675 multifunction Point-of-Sale (POS) printer is the quietest printer in its class and is ideal for both banking and retail environments. The TM-U675 is packed with features and functions needed most to ensure the smooth and fast handling and printing of slips, receipts and validations all in a single compact unit.

Model: C31C283061

Where to Buy

Overview

High speed MICR reading and check printing

Wider throat for smooth, drop-in validation

Quietest printer in its class

Highest reliability rating in its class

Easy drop-in paper loading and one-touch removal

Superior slip handling for ease of use

Optimized features and small footprint

Specifications

Consumables:

Inked Ribbon: ERC-32Ribbon Life: 4,000,000 characters

Power:

Power Consumption: Approx. 1.7 A (mean)Power Source: 24 VDC ± 10%

Print Fonts:

Character Size: 1.56 x 3.1mm (W x H) / 1.24 x 3.1mm (W x H)
[0.061 x 0.122" / 0.049 x 0.122"]Column Capacity:

Receipt: 37 / 50 columns

Slip / Validation: 45 / 60 columns
Character Set: 95 Alphanumeric
37 International
128 x 11 Graphic charactersFonts: 5 x 9 / 7 x 9

Media Handling:

Length: Validation: 8 linesThickness:

Receipts and Journal: 0.06 to 0.085mm [0.0024 to 0.0033"] / sheet (total thickness: 0.2mm [0.0079"] or less)

Slip: 0.09 to 0.2mm [0.0035 to 0.0079"] / sheet (total thickness: 0.09 to 0.31mm) [0.0035 to 0.0122"]
Media Dimensions:

Receipts and Journal: 82.5 ± 0.5 x diameter 83mm [3.25 ± 0.02 x diameter 3.27"]

Slip: 70 to 148 x 150 to 210mm (W x L) [2.76 to 5.83 x 5.91 to 8.27"]

Validation: 148 to 150 x 70 to 210mm (W x L) [5.83 to 5.91 x 2.76 to 8.27"]
Copy Capacity: One original and two copies

Connectivity:

Standard Connectivity: Serial

Print Other:

Printing Technology: 9-pin
serial impact dot matrixPrint Speed: Approx. 5.14 lps (40 columns
17.8 cpi)

General:

Weight: Approx. 4.8 kg [10.6 lbs]Safety Approvals:

EMI standards: VCCI class A
FCC class A
CE marking

Safety standards: UL
CSA
Dimensions: 186 x 298 x 195mm (W x D x H) [7.3 x 11.7 x 7.7"]

POS General (POS Details):

Reliability, POS General:

MTBF: 180,000 hours

MCBF: 37,000,000 linesNV Bit Image Memory: 384 KB can be used to store graphic filesD.K.D., POS General: 2 driversOptions: Autocutter
MICR
