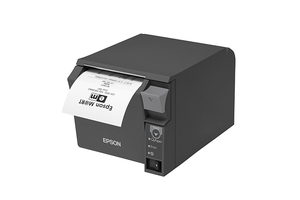

TM-T70II POS Receipt Printer
TM-T70II POS Receipt Printer

Epson's mPOS-friendly TM-T70II POS printer, with its small size and low height (only 4.49" high), is designed to fit under a counter, in kiosks and other small spaces. It features fast printing of up to 250mm/second, industry-leading reliability, dual interfaces and more. And it supports all the leading mobile operating systems including iOS, Android and Windows.

  • Model: C31CD38763
Where to Buy
  • mPOS-friendly printer compatible with iOS, Android and Windows mobile devices
  • DHCP enabled model available for easy IP/network configuration
  • Printer class model available for easy connection and discovery
  • Supports 802.11a/b/g/n with 2.4GHz/5GHz and Bluetooth® 2.1 + EDR
  • Designed to fit under counters
  • Front-facing controls, paper loading and receipt dispensing
  • Fast printing up to 250mm/sec
  • Paper saving options reduce usage up to 30%
  • Enables intelligent couponing triggered by keywords/sequence

    • Power:

    Power Consumption: Approx. 2.0A (mean)Power Source: 50/60 Hz; External (AC cable included)

    Print Fonts:

    Character Size:
  • (Std / Double H
    Double W / Double W and Double H)
  • Font A: 1.41 x 3.39 / 1.41 x 6.77 / 2.82 x 3.39 /2.82 x 6.77mm
  • Font B: 0.99 x 2.40 / 0.99 x 4.80 / 1.98 x 2.40 /1.98 x 4.80mm
    Print Fonts: Font A: 12 x 24 dots; Font B: 9 x 17 dots (W x H)Column Capacity: B) 80mm: 42/56Character Set:
  • 95 Alphanumeric
    18 set International
    128 x 43 Pages
    Fonts:
    Font A: 12 x 24 dots; Font B: 9 x 17 dots (W x H)Characters per Inch: 20.0 and 15.0 cpiBarcode: UPC-A
    UPC-E
    JAN13 (EAN13)
    JAN8 (EAN)
    CODE39
    ITF
    CODABAR (NW-7)
    CODE93
    CODE128
    GS1-128
    GS1 DataBar.

    • Media Handling:

    Media Dimensions: 80mm: 3.13" ± 0.02" x 3.27" diameter (79.5 ±0.5(W) x 83mm)

    Connectivity:

    Standard Connectivity: Built-in USB interface + another selection: serial
    parallel
    powered USB
    Ethernet
    802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) or Bluetooth 2.1 + EDRPrinting from a Mobile Device:
  • Wi-Fi (802.11): iOS, Android™ and Windows®
  • Bluetooth: iOS, Android™ and Windows®

    • Print Other:

    Printing Technology: Thermal line printingPrint Speed: Max. 250mm/sec (9.84"/sec)

    General:

    Weight: 3.75 lbs (1.7 kg)Safety Approvals:
  • Safety standards: UL/CSA/EN/TUV/GOST-R
  • EU directive: RoHS and WEEE compliant
    Case Color: Epson Dark GrayDimensions: 4.92" x 7.64" x 4.49" (125 x 194 x 114 mm) (W x D x H)

    • POS General (POS Details):

    Reliability, POS General:
  • MTBF: 360000 hours
  • MCBF: 65000000 lines
  • Auto Cutter: 1.7 million cutsD.K.D., POS General: 2 driversOptions: External buzzer unit
    cable management cover
    shelf bracket
