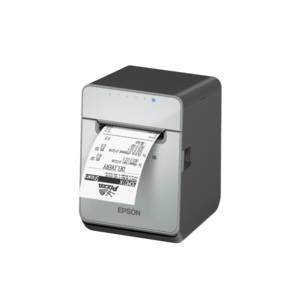

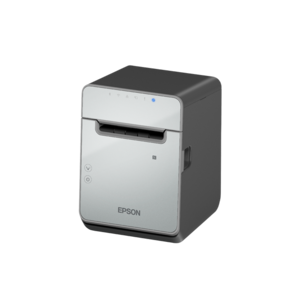

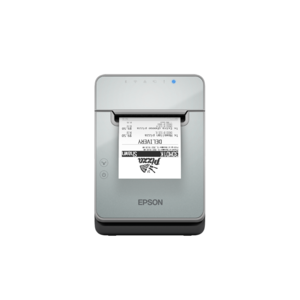

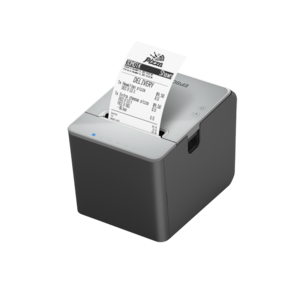

TM-L100 Liner-Free Label Printer

TM-L100 label printer offers high quality label, barcode and receipt printing It features fast print speeds up to 170mm/sec. It offers extensive liner-free media support, ideal for a wide variety of use cases across hospitality, retail and more.

Model: C31CJ52301

Where to Buy

Catalogue Download

Overview

Extensive liner-free media support
Fast printing speeds at up to 170mm/second
High quality, thermal printing at 203 x 203 dpi
Flexible connectivity — for virtually any environment with built-in USB and Ethernet; plus Serial port
High Reliability — engineered for liner-free labels with long auto cutter and printhead life

Specifications

Print Fonts:

Column Capacity: 80 mm Width Media: ANK Font A (default), 42/48; ANK Font B, 55/64 58 mm Width Media: ANK Font A, 35; ANK Font B, 46 40 mm Width Media: ANK Font A, 23; ANK Font B, 31Character Set: 95 alphanumeric characters, 18 international sets, 128 x 43 pages extended graphics, Japanese (JIS X0208-1990, JIS X0213, 845 special characters), Simplified Chinese (GB18030- 2000), Traditional Chinese (Big5), Korean (KS C5601)Fonts: ANK Font A (default): 12 x 24 dots ; ANK Font B: 9 x 17 dots
Kanji Font A: 24 x 24 dots ; Kanji Font B: 20 x 24 dots (Japanese); 16 x 16 dots (Korean)
Special Font A: 12 x 24 dots ; Special Font B: 9 x 24 dots Barcode: UPC-A
UPC-E
JAN8 (EAN)
Jan13 (EAN)
ITF
CODE39
CODE93
CODE128
CODABAR
PDF417
GS1 DataBar
QRCODE

Media Handling:

Width: 40 mm (liner-free label media only): 39.5 ± 0.5 mm (1.56" ± 0.02")
58 mm (default): 57.5 ± 0.5 mm (2.26" ± 0.02")
80 mm: 79.5 ± 0.5 mm (3.13" ± 0.02")Roll Diameter: Maximum: 102 mm (4.02")

Connectivity:

Standard Connectivity: USB Type-B, Ethernet (10/100 Base-T/TX), Serial

Print Other:

Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpi

General:

Weight: 1.9 kgOperating Systems: iOS, Android, Windows, GNU (Linux) Case Color: Epson BlackDimensions: 140 x 148.5 x 207 mm (W x D x H)

POS General (POS Details):

Reliability, POS General:

MTBF: 360,000 hours

MCBF: 70 million lines printed (receipt), 35 million lines printed (liner-free label)

Autocutter: 2 million cuts receipts, 1 million cuts (liner-free label)

Printer Reliability: 20 million lines printed (receipt), 10 million lines printed (liner-free label)
