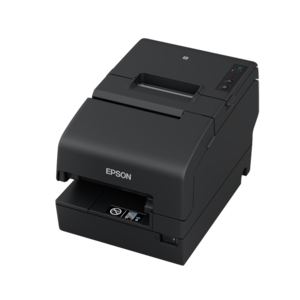

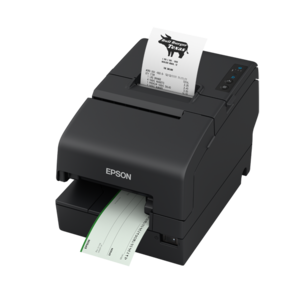

TM-H6000VI Multifunction Printer

Delivers High-Speed Receipt and Slip Printing

The TM-H6000VI multifunction receipt printer with check processing capabilities is designed to meet the demands of high-volume businesses. This multifunction receipt printer features the fastest print speeds, reaching up to 500 mm/sec, and is engineered for reliability. It is equipped with an automatic paper cutter and an easy-to-clean water-resistant enclosure. Furthermore, the MICR accuracy is as high as 99.9%, enabling quick and efficient check processing.

Model: C31CL25504

Where to Buy

CATALOGUE DOWNLOAD

Overview

Fastest printing in its class up to 500mm/second
Fastest check processing speed in the industry
99.9% MICR accuracy; a leader in the industry

Specifications

Consumables:

Inked Ribbon:

Slip: ERC-32B (black)

Endorsement: ERC-43B (black)
Ribbon Life:

Slip: 4,000,000 characters

Endorsement: 3,000,000 characters

Power:

Power Source: 24 VDC ± 7%

Print Fonts:

Character Size:

Receipt: 0.99 x 2.4mm (W x H) [1.41 x 3.39mm (W x H)]

Slip: 1.56 x 3.1mm (W x H) [1.24 x 3.1mm (W x H)]

Endorsement: 1.1 x 2.42mm (W x H)
Print Fonts: Receipt: 9 x 17 / 12 x 24
Slip: 5 x 9 / 7 x 9
Endorsement: 5 x 7Column Capacity:

Receipt: 56 / 42 columns

Slip: 45 / 60 columns

Endorsement: 40 columns
Character Set: 95 Alphanumeric
18 International
128 x 43 Graphic
Traditional ChineseBarcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE 39, CODE 93, CODE 128, CODE 128 Auto, ITF, CODABAR(NW-7),
GS1-128, GS1 DataBar (Truncated, Limited, Expanded)

Media Handling:

Thickness:

Receipt: 48 – 80 µm

Slip/Endorsement: 0.09-0.22mm single-plyMedia Dimensions:

Receipt: 79.5 ± 0.5mm (width) x 83mm (roll diameter)

Slip: 68 to 230 mm (width) x 68 -297mm (height)
Copy Capacity:

Slip: One original & three copies

Endorsement: One original single-ply & 2 copies

Connectivity:

Standard Connectivity: USB, Ethernet, Serial

Print Other:

Printing Technology:

Receipt: Thermal line printing

Slip: 9-pin serial impact dot matrix

Endorsement: Serial impact
Print Speed:

Receipt: Up to 500mm/sec

Slip: Up to 5.7 lps

Endorsement: Up to 4.0 lps

General:

Weight: Approx. 4.4 kg (9.7 lbs)Operating Systems: Microsoft® Windows® 10(32/64 bit),11; WEPOS; POSReadySafety Approvals: RoHS compliantDimensions: 186 mm x 278 mm x 181mm

POS General (POS Details):

Reliability, POS General:

Receipt
▫ MTBF: 360,000 hours
MCBF: 96,000,000 lines

Slip
▫ MTBF: 180,000 hours
▫ MCBF: 29,000,000 lines

Endorsement
▫ MTBF: 180,000Data Buffer: 45 bytes or 4 KB (up to 384 KB for graphic files)D.K.D., POS General: 2 drivers
