CW-C6530 Inkjet Label Printer

Contact Us
(852) 2827 8711
techsupp@ehk.epson.com.hk
Monday to Friday 9:00 to 18:00 HKT
Zoom In

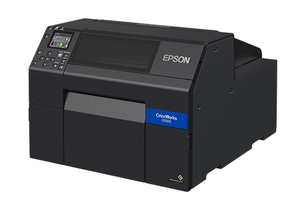

CW-C6530 Inkjet Label Printer
CW-C6530 Inkjet Label Printer

The CW-C6530 Series feature 8-inch colour label printers that offer bespoke, flexible, colour labelling and support a wide range of label sizes. It meets the needs of small to medium batch customers across many sectors (food, chemical, beverage, manufacturing etc.). The series includes peeler-equipped model (item code: C31CH77204) and auto-cutter model (item code: C31CH77104).

  • Model: C31CH77204
Where to Buy
  • Media Flexibility: Expanded media support. Label widths from 25.4mm to 215.9mm
  • Compact: Simple, unobtrusive design with front panel operation
  • Built-in peeler model (CW-C6530P): For print-and-apply production line goods.
  • Auto-cutter model (CW-C6530A): For chemical, food & beverage, horticulture, and logistics - primary and secondary labelling.
  • Matte black ink version: Available for both CW-C6530A and CW-C6530P models

Print Other:

Print Resolution: 1200dpi x 1200dpi (Max.)Print Speed: Max speed (300x600dpi): 85mm/s, Speed (600x600dpi): 49mm/s, Normal (600x600dpi): 34mm/s, Quality (600x1200dpi): 13mm/s *When 203.2mm width printing
High-speed mode
◦69mm/sec. (104mm print width) {2.7"/sec. (4.1" print width)}
◦83mm/sec. (72mm print width) {3.3"/sec. (2.8" print width)}
◦94mm/sec. (56mm print width) {3.7"/sec. (2.2" print width)}
  • 360 dpi x 360 dpi

    • Connectivity:

    Standard Connectivity: USB 2.0;
    Ethernet 10/100 BASE-T

    Ink:

    Ink Type: Pigment ink (4 color)
    individual CMYK cartridges1Ink Cartridge Configuration:
  • SJIC38P(K)  Black    C13T44E180
  • SJIC38P(C)  Cyan   C13T44E280
  • SJIC38P(M)   Magenta C13T44E380
  • SJIC38P(Y)   Yellow   C13T44E480
  • SJIC38P(MK)   Matte Black   C13T44E580

    • General:

    Weight: Printer (without ink): Peeler model: Appx.26.3kg, A/C model Appx.25.5kgOperating Systems: Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8, Mac OS X 10.7.x, Mac OS X 10.8.x, Mac OS X 10.9.x, Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.14.xTemperature: Operating: 5-35 degrees CHumidity: Operating: 20-80% RH humiditySound Level: AC model ：Approximately 55dB (ANSI Bystander position) / Peeler model ：Approximately 60dB (ANSI Bystander position)Dimensions: Printer: 444 x 515 x 326 (W x D x H)

    Media Handling:

    Width: 25.4mm - 215.9mmThickness: Matte paper label: 0.178mm, Synthetic label; 0.235mm, Glossy paper label: 0.174mm, Glossy film label: 0.164mm, High glossy paper label: 0.188mmRoll Diameter: Max. 152.4mmBlack Mark Size: Width:18.4mm or over,　Length:4mm-25.4mmType: Matte paper label, Synthetic label, Glossy paper label, Glossy film label, High glossy paper label

    Fonts:

    Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded
    See Full Specs Hide Full Specs
    Print All Specs

    Notes:

    Part of the ink from the first cartridges/packs is used for initializing the printer. Ink usage will vary considerably based on images printed, print settings, paper type, frequency of use, temperature and humidity. Variance may be more pronounced when printing infrequently or predominantly with one ink color. Ink is used for printing and printer maintenance and all colors must be available for printing. For print quality, a variable amount of ink remains after the “replace ink” indicator comes on.
