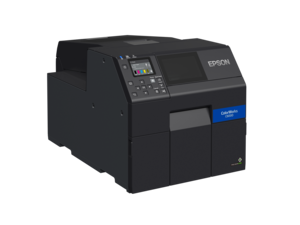

CW-C6030 Inkjet Label Printer

The CW-C6030 Series feature 4-inch colour label printers that offer bespoke, flexible, colour labelling and support a wide range of label sizes. It meets the needs of small to medium batch customers across many sectors (food, chemical, beverage, manufacturing etc.). The series includes peeler-equipped model (item code: C31CH76204) and auto-cutter model (item code: C31CH76104).

Where to Buy

Overview

Media Flexibility: Expanded media support. Label widths from 25.4mm to 112mm
Compact: Simple, unobtrusive design with front panel operation

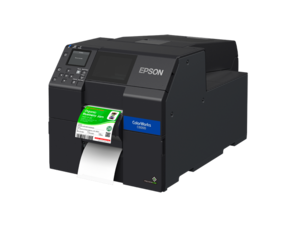

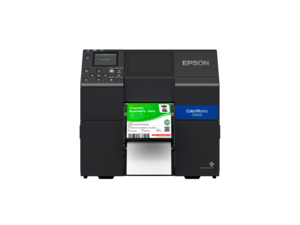

Built-in peeler model (CW-C6030P): For print-and-apply production line goods.

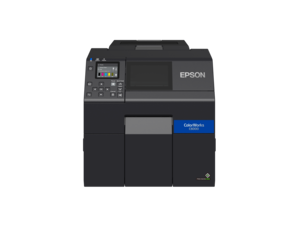

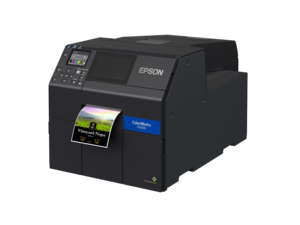

Auto-cutter model (CW-C6030A): For chemical, food & beverage, horticulture, and logistics - primary and secondary labelling.
Matte black ink version: Available for both CW-C6030A and CW-C6030P models

Specifications

Print Other:

Print Resolution: 1200dpi x 1200dpi (Max.)Print Speed: Max speed (300x600dpi): 119mm/s, Speed (600x600dpi): 75mm/s, Normal (600x600dpi): 48mm/s, Quality (600x1200dpi): 18mm/s *When 101.6mm width

Connectivity:

Standard Connectivity: USB 2.0;
Ethernet 1000Base-T / 100Base-TX / 10Base-T

Ink:

Ink Type: Pigment ink (4 color)
individual CMYK cartridges (Optional Matte/ Gloss black ink type)Ink Cartridge Configuration: SJIC38P(K) Black C13T44E180
SJIC38P(C) Cyan C13T44E280
SJIC38P(M) Magenta C13T44E380
SJIC38P(Y) Yellow C13T44E480
SJIC38P(MK) Matte Black C13T44E580

General:

Weight: Printer (without ink and roller media): Peeler model: Appx.22.8kg, A/C model Appx.22.5kgOperating Systems: Windows 10, 8.1, 8, 7 SP1, Vista SP2, XP SP3 or later, Server 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003 R2 (32-bit), Mac OS X 10.6.8, Mac OS X 10.7.x, Mac OS X 10.8.x, Mac OS X 10.9.x, Mac OS X 10.10.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.14.xTemperature: Printing: 5-35 degrees Celsius, 20-80% RH
Barcode Printing: 15-35 degrees Celsius, 20-80% RHSound Level: AC model ：Approximately 55dB (ANSI Bystander position) / Peeler model ：Approximately 60dB (ANSI Bystander position)Dimensions: Printer: 340 x 565 x 326 (W x D x H)

Media Handling:

Width: 25.4mm - 112mmThickness: Matte paper label: 0.178mm
Synthetic label: 0.235mm
Glossy paper label: 0.174mm
Glossy film label: 0.164mm
High glossy paper label: 0.188mmRoll Diameter: Max. 203.2 mmBlack Mark Size: Width:18.4mm or over,　Length:4mm-25.4mmType: Matte paper label, Synthetic label, Glossy paper label, Glossy film label, High glossy paper label

Fonts:

Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

See Full Specs Hide Full Specs

Print All Specs

Notes:

Part of the ink from the first cartridges/packs is used for initializing the printer. Ink usage will vary considerably based on images printed, print settings, paper type, frequency of use, temperature and humidity. Variance may be more pronounced when printing infrequently or predominantly with one ink color. Ink is used for printing and printer maintenance and all colors must be available for printing. For print quality, a variable amount of ink remains after the “replace ink” indicator comes on.
