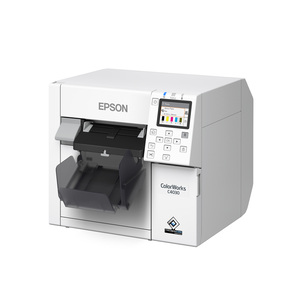

Powerful and Compact Color Label Printer, CW-C4030

  • High-performance PrecisionCore Technology
  • Printing up to 1,200 dpi resolution
  • UltraChrome DL pigment inks with BS-5609 certification
  • With 2.7-inch LCD display panel

Where to Buy
High-quality Printing – Epson-engineered PrecisionCore TFP printhead technology delivers ultra sharp text and precise barcodes. It also produces varying droplet sizes that, coupled with a 1200 x 1200 dpi resolution, can produce a huge gamut of vibrant, accurate colors, smooth gradations and fine image details.

High Durability - CW-C4030 uses highly durable UltraChrome DL pigment inks with gloss or matte versions available to best suit the labeling application. Water resistant labels won’t smudge, smear or fade. They're BS‑5609 certified and chemical resistant.

Easy Operation - A large (2.7 inches) LCD display panel makes for simple operation. Media rolls can be easily swapped and changed. CW-C4030 also features an auto-cutter, which can be easily replaced without the need for an engineer visit.

Print Other:

Print Resolution: Max. 1200 dpi x 1200 dpiPrint Width: Max. 108 mmPrint Speed: (4" Print Width)
Max Speed (300 x 600dpi): 100mm/s
Speed (600 x 600dpi): 70mm/s
Normal (600 x 600dpi): 48mm/s
Quality (600 x 1200dpi): 18mm/s
Max Quality (1200 x 1200dpi): 8mm/s

Connectivity:

Standard Connectivity: USB 2.0
Ethernet 1000Base-T / 100Base-TX / 10Base-T
Wi-Fi (Optional)

Ink:

Ink Type: UltraChrome DL Pigment InkInk Palette: Black, Cyan, Magenta, Yellow

General:

Weight: Approx. 13 kgOperating Systems: Windows 11, Windows 10, 8.1, Server 2019, 2016, 2012 R2 (64bit), 2012(64bit), Mac OS 10.9.5 or later, Mac OS 11.x or laterDimensions: 310 x 283 x 285 mm (W X D X H)

Media Handling:

Width: (Roll) 21.4mm - 108mm; (Fanfold) 46mm - 108mmThickness: (Roll)
Plain paper: 0.084mm, Matte paper: 0.131mm, Glossy paper: 0.119mm, Wrist band: 0.225mm
Plain paper label: 0.159mm, Matte paper label: 0.178mm, Texture paper label: 0.24mm, Synthetic label: 0.229mm
Glossy paper label: 0.174mm, Glossy film label: 0.164mm, High glossy paper label: 0.188mm
(Fanfold)
Plain paper: 0.128mm, Matte paper: 0.131mm, Glossy paper: 0.119mm
Plain paper label: 0.159mm, Matte paper label: 0.178mm, Texture paper label: 0.24mm
Synthetic label: 0.229mm, Glossy paper label: 0.174mm, Glossy film label: 0.164mm, High glossy paper label: 0.188mmRoll Diameter: Max. 101.6mmDie-cut Label Gap: 2mm - 6mmBlack Mark Size: Width: 13mm or over, Length: 4mm - 25.4mm. 4mm or more of blank spaceType: Plain paper, Plain paper label, Matte paper, Matte paper label, Synthetic label, Texture paper label, Glossy paper, Glossy paper label, Glossy film label, High glossy paper label, Wrist bandAuto Cutter: ***Cutter Life (cuts)***
Paper Liner up to 1.5 M
Synthetic Liner up to 0.5 M
Continuous Matte Paper up to 0.5 M
Continuous Gloss Paper up to 0.3 M
Continuous Synthetic up to 0.1 M

Fonts:

Barcode: UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar ExpandedTwo-dimensional Code Printing: PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code
See Full Specs Hide Full Specs
Print All Specs

Notes:

Part of the ink from the first cartridges/packs is used for initializing the printer. Ink usage will vary considerably based on images printed, print settings, paper type, frequency of use, temperature and humidity. Variance may be more pronounced when printing infrequently or predominantly with one ink color. Ink is used for printing and printer maintenance and all colors must be available for printing. For print quality, a variable amount of ink remains after the “replace ink” indicator comes on.
