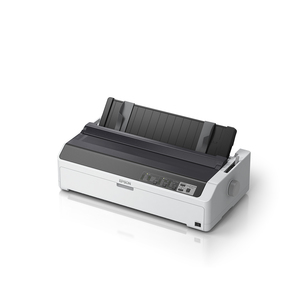

Epson LQ-2090llN

Monday to Friday 9:00 to 18:00 HKT

A3 size 24pins Chinese Dot Matrix Printer

"With powerful 24-pin technology, the wide-format Epson® LQ-2090IIN delivers precision text and graphics, plus rugged reliability for critical print requirements. Offering print speeds of up to 550 cps and easy integration with existing printing formats, this robust performer is sure to increase productivity. With versatile 5-part forms printing, multiple paper loading options, and a durable, long-lasting ribbon, it races through reports, purchase orders, invoices and more. Ideal for point-of-sale, manufacturing, and production environments, this workhorse boasts an amazing 25,000 POH MTBF rating and a 400 million character print head life. Its easy-to-use control panel makes changing print settings a snap, while convenient configuration software facilitates simple setup via a PC. It even provides Parallel and USB connections, plus a slot for optional interface cards, including high-speed Ethernet, for greater compatibility with practically any system.

  • Model: C11CF40508
  • Delivers high quality text and graphics for critical applications
  • Speeds through multipart forms, reports, labels and more at up to 550 cps
  • Offers an MTBF rating of 25,000 POH and a 400 million character print head life
  • Facilitates greater productivity with less downtime
  • Ensures the lowest cost per page
  • Epson and IBM printer languages ensure compatibility for new and legacy printing applications
  • Improved menu navigation allows quick and easy changes to printer settings
  • Remote Configuration Manager facilitates easy setup via a PC
  • Interfaces: USB, Parallel, Serial, Ethernet
  • Print Other:


    Printing Technology: 24-pin
    serial impact dot matrixISO Print Speed:
    • Ultra Speed Draft: 550 cps (10 cpi)
    • High Speed Draft: 487 cps (10 cpi)
    • Draft: 366 cps (10 cpi)
    • Letter Quality: 121 cps (10 cpi)

    Paper Handling Impact:


    Forms: original plus 6 carbonless copiesEnvelopes:
    • No. 6 envelopes: 6.5" x 3.6"
    • No. 10 envelopes: 9.5" x 4.1"
    Width:
    • Single sheets: 3.9" to 16.5"
    • Continuous: 4" to 16"
    • Cut-sheet feeder: 7.2" to 16.5"
    • Labels: Minimum: 2.5" x 0.94"Length:
      • Single sheets: 3.9" to 14.3"
      • Continuous: 4" to 22"
      • Cut-sheet feeder: 10.1" to 14"
      • Roll paper: 8.5" widthPaper Path:
        • Manual insertion: Front or top in
          top out
        • Cut sheet feeder: Top in
          top out
        • Tractor: Front
          rear or bottom in
          top out

    Power:


    Power Consumption: Rated voltage 220 – 240V AC
    input voltage range 220 – 240V
    rated frequency range 50 – 60 Hz
    input frequency range 49.5 – 60.5 HzRated Frequency: 50 – 60 HzRated Voltage: AC 220 - 240VPower Requirements: Rated voltage 220 – 240V AC
    input voltage range 220 – 240V
    rated frequency range 50 – 60 Hz
    input frequency range 49.5 – 60.5 HzInput voltage range: 220 – 240VInput frequency range: 49.5 – 60.5 Hz

    General:


    Weight: 9.4kgOperating Systems: XP
    Windows 95
    NT 4.0
    98
    2000
    Me
    Vista
    Win 7-8Sound Level: 55 dBADimensions: 612‎ x 375 x 177mm (W x D x H)

    General Impact:


    Software Drivers: Windows 95
    98
    2000
    Me
    XP and NT 4.0Printer Language:
    • Epson ESC / P2
    • IBM PPDS
    Interfaces:
    • Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
    • USB 2.0
    • Serial interface board
    • Network 10/100Base-TX interface board
    Control Panel: Functions: Font
    pitch
    pause
    tear off
    bin selection
    line feed
    form feed
    load
    eject
    micro adjust
    top-of-form adjustment
    panel lockout
    reset
    menu
    default setting selectionInput Buffer: 128 KB

    Characters & Lines:


    Resident Bitmapped Fonts:
    • Epson Draft 10
      12
      15 cpi
    • Epson Roman 10
      12
      15 cpi proportional
    • Epson San Serif 10
      12
      15 cpi proportional
    • Epson Courier 10
      12
      15 cpi
    • Epson Prestige 10
      12
      15 cpi
    • Epson Script 10 cpi
    • Epson OCRB 10 cpi
    • Epson Script C proportional
    • Epson Orator 10 cpi
    • Epson Orator S 10 cpi
    Bar Code Fonts: EAN-13
    EAN-8
    Interleaved 2 of 5
    UPC-A
    UPC-E
    Code 39
    Code 128
    POSTNET
    Codabar (NW-7)
    Industrial 2 of 5
    Matrix 2 of 5Characters per Line: 136 characters at 10 cpiFormatting:
    • 32 horizontal tabs
    • line spacing in 1/6" or programmable (minimum 1/360" increments)
    • skip over perforations in lines
    • page length in lines or inches

    Reliability:


    Ribbon life: 8 million characters at 48 dots / characterPrint head life: 400 million charactersMTBF: 25000 POH (25% duty cycle)
