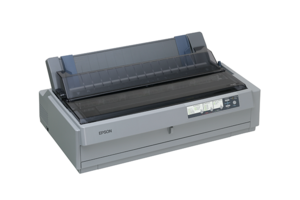

Epson LQ-2190

Monday to Friday 9:00 to 18:00 HKT

HIGHLY DEPENDABLE FOR THE MOST DEMANDING BUSINESS ENVIRONMENTS

The 24-pin A3 size printer is designed to offer busy offices unparalleled performance and reliability.

    • 24-pin A3 size Dot Matrix Printer
      Speed: up to 480 cps (10cpi)
      MTBF: 20,000 Power on Hours
      USB and Parallel ports
      Optional network print server
  • Model: C11CA92061
High Speed
The 24-pin wide carriage LQ-2190 boosts a high print speed of up to 480 cps (10 cpi) makes it an ideal solution for high volume applications.

Robust and Reliable
With MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.

Versatile Connectivity
With a built-in USB, parallel interface and optional network print server, the LQ-2190 is engineered for versatile connectivity. What’s more, choice of front, rear and bottom paper paths gives you even more control over desk space management.

High Ribbon Yield
With a ribbon life of around 15 million characters, the ribbon replacement intervals are longer which in turn lower running costs and total cost of ownership.

General:


Operating Systems: Windows 2000 / Me /XP / Vista / 7 / 8 / 8.1 / 10Sound Level: 128 KBCase Color: 1 original + 5 copiesDimensions: ESC/P2 and IBM PPDS emulation

Characters & Lines:


Character Sets: 14 international character sets
1 legal character sets
1 Italic and 12 graphical character tables
Scalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H
Bar Code Fonts: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Coda bar (NW-7)
Industrial 2 of 5
Matrix 2 of 5

Reliability:


Print head life: 400 million strokesMTBF: 20000 hours

Print Characteristics:


Standard: Italic table
PC437 (US Standard Europe)
PC850 (Multilingual)
PC860 (Portuguese)
PC861 (Icelandic)
PC863 (Canadian-French)
PC865 (Nordic)
BRASCII
Abicomp
Roman 8
ISO Latin 1
PC 858
ISO 8859-15
Barcodes: EAN-13
EAN-8
Interleaved 2 of 5
UPC-A
UPC-E
Code 39
Code 128
POSTNET
Coda bar (NW-7)
Industrial 2 of 5
Matrix 2 of 5
Bitmap Fonts: Epson Draft / Epson Courier / Epson Roman / Epson Sans Serif / Epson Prestige / Epson Script / OCR-B / Orator / Orator-S / Epson Script C
Scalable Fontss: Epson Roman / Sans Serif / Roman T / Sans Serif H

Electrical Specifications:


Operating: 46WRated Voltage: AC 220 - 240VRated Frequency: 50 - 60 Hz

Consumables:


Ribbon Cartridge Black: 15 million characters - C13S015531

Printing Technology:


Print Method: Impact dot matrixNumber of Pins: 24

Dimensions and Weight:


Weight: 13kg

Paper Media:


Envelopes: No.6
No.10
Thickness: 0.16 - 0.52mm (0.0063" - 0.0205") (Total)

Paper Path:


Manual Insertion: Front or Rear In
Top outPush Tractor: Front or Rear In
Top outPull Tractor: Front or Rear or Bottom in
Top out

Options:


Options: Epson net 10/100 Base TX Int. Print Server - C824352
Pull Tractor Unit - C800322
Serial I/F Card No Buffer Type-B - C824432

Notes:

*1 Actual print yield may vary depending on usage purpose and environment

*2 Without condensation

*3 During printing on reclaimed paper, multi- part paper, envelope, label or roll paper
